Deck floor can support the floor concrete, there are total three series floor deck:

1/ Opening floor deck

2/ necking down floor deck

3/ Closed floor deck

Floor deck is applied to power station, power equipment company, Auto exhibition hall, steel structure office, airport departure hall, train station, stadium, concert hall, grand theater, super market, logistic center, etc.

Main feature

1/ Adapt to the requirement of rapid construction to the main steel structure

2/ As tensile bar of the concrete floor in the service stage, which improve the rigidity of floor and save the dosage of steel bar and concrete.

3/ surface embossing make the max binding force between the floor deck and concrete, which make both to form a entirety and high carrying capacity.

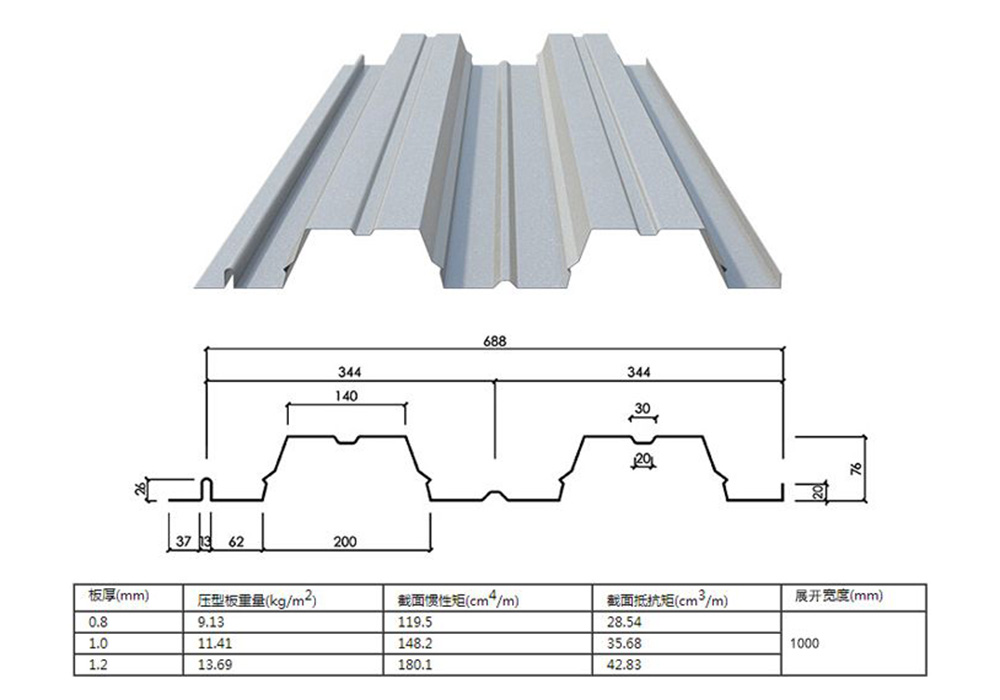

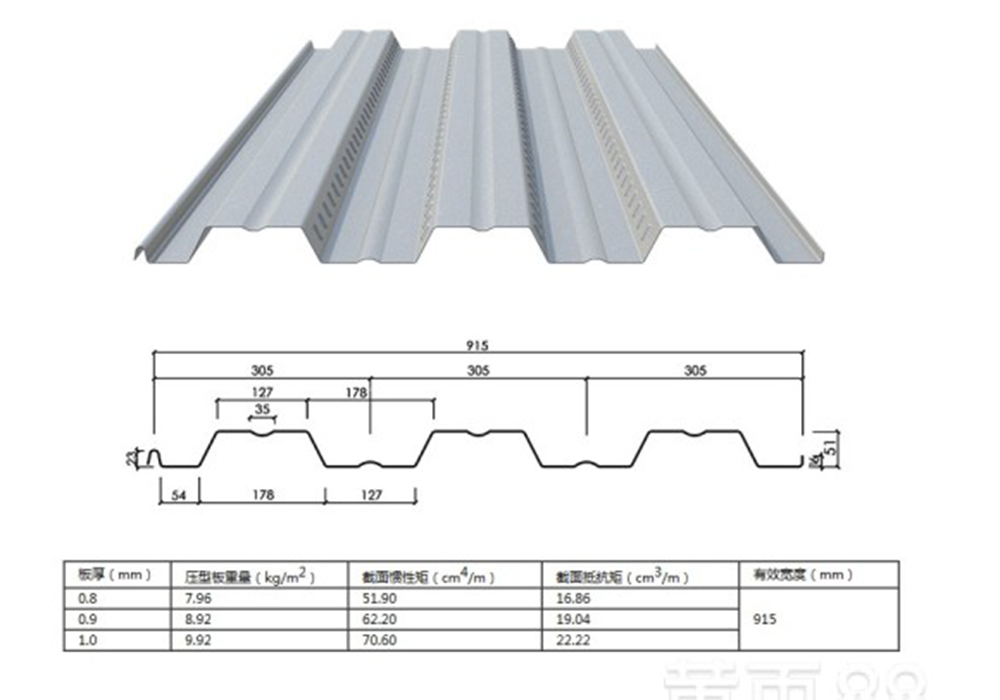

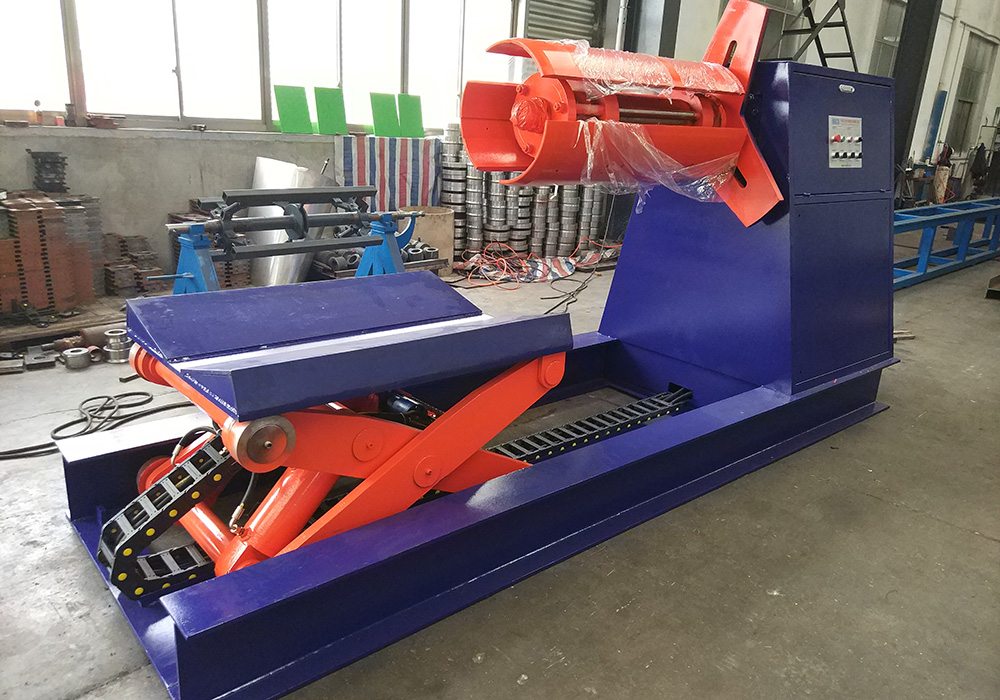

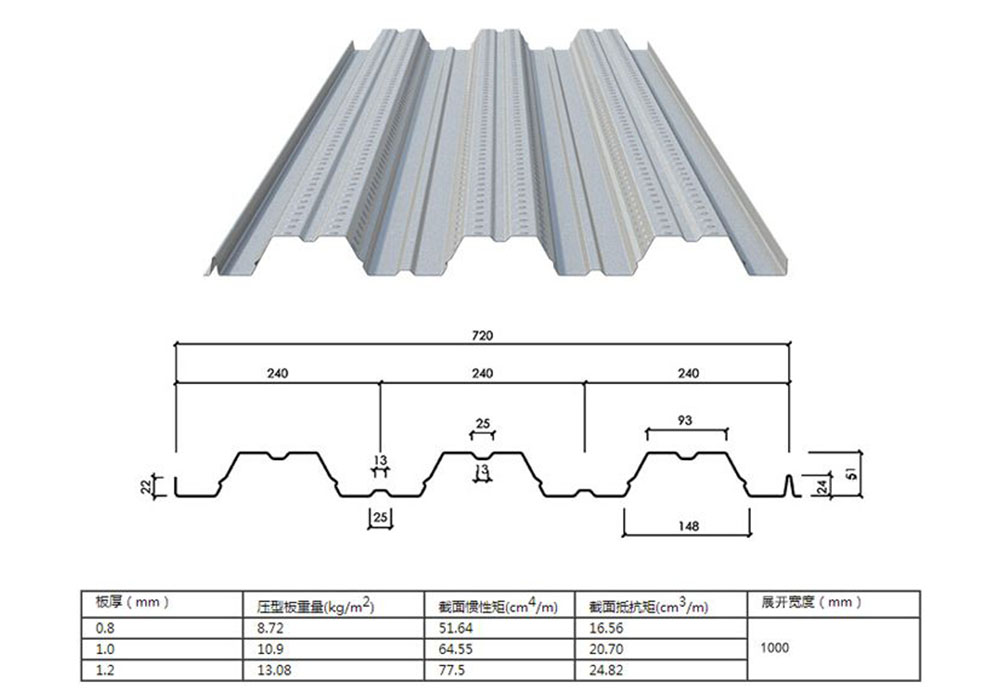

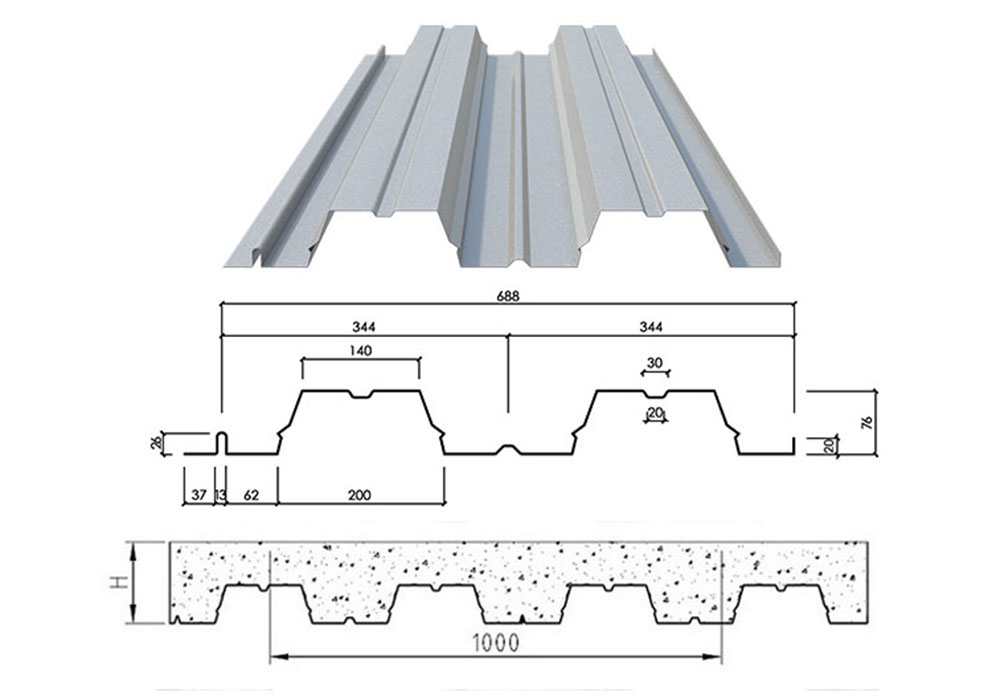

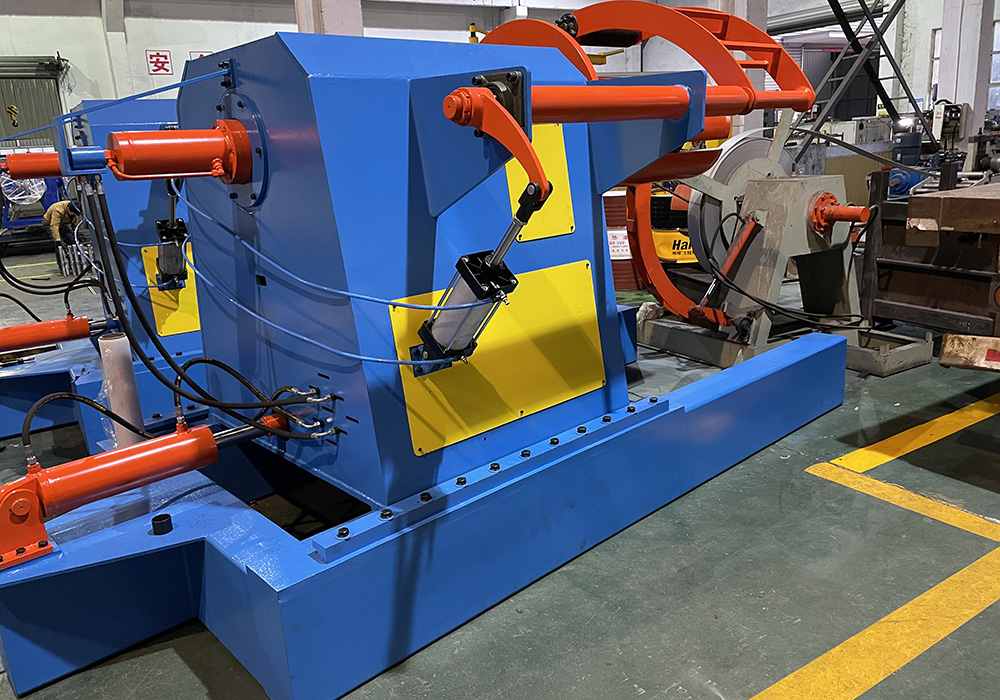

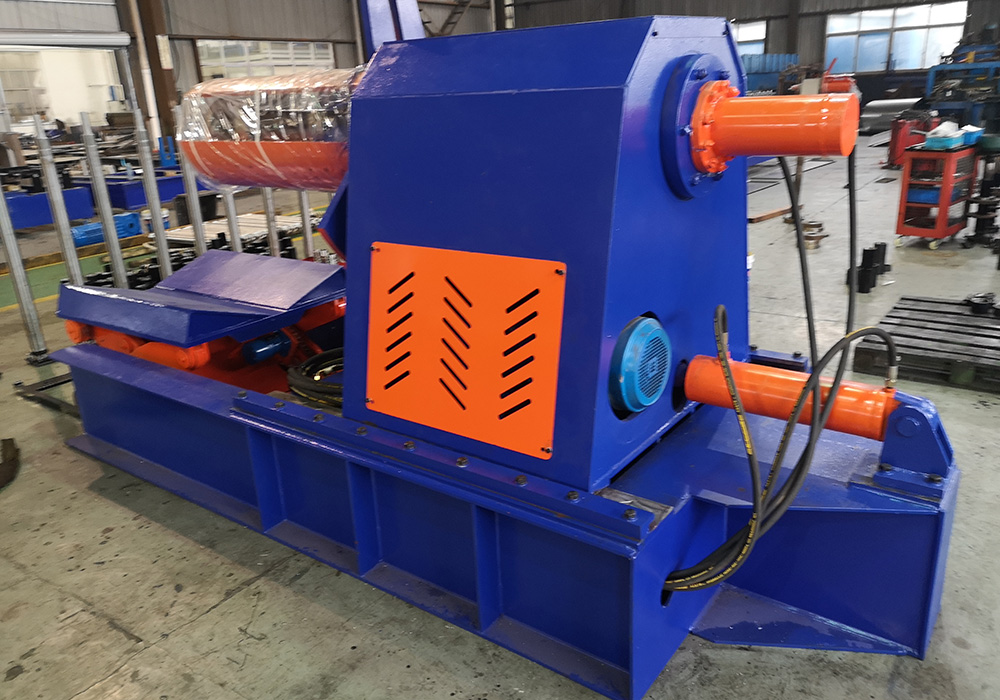

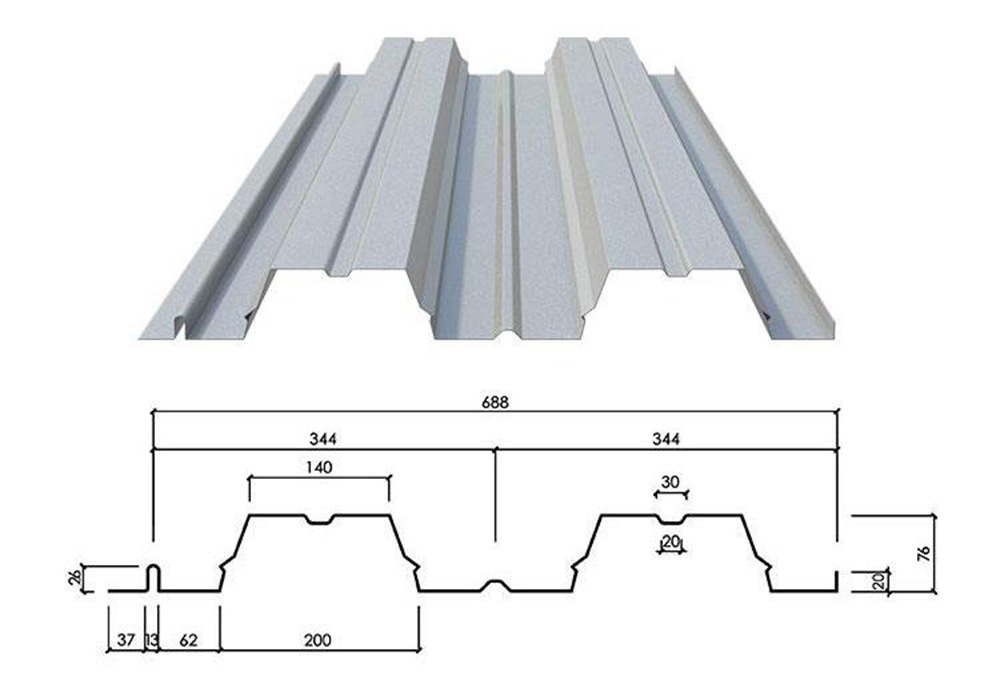

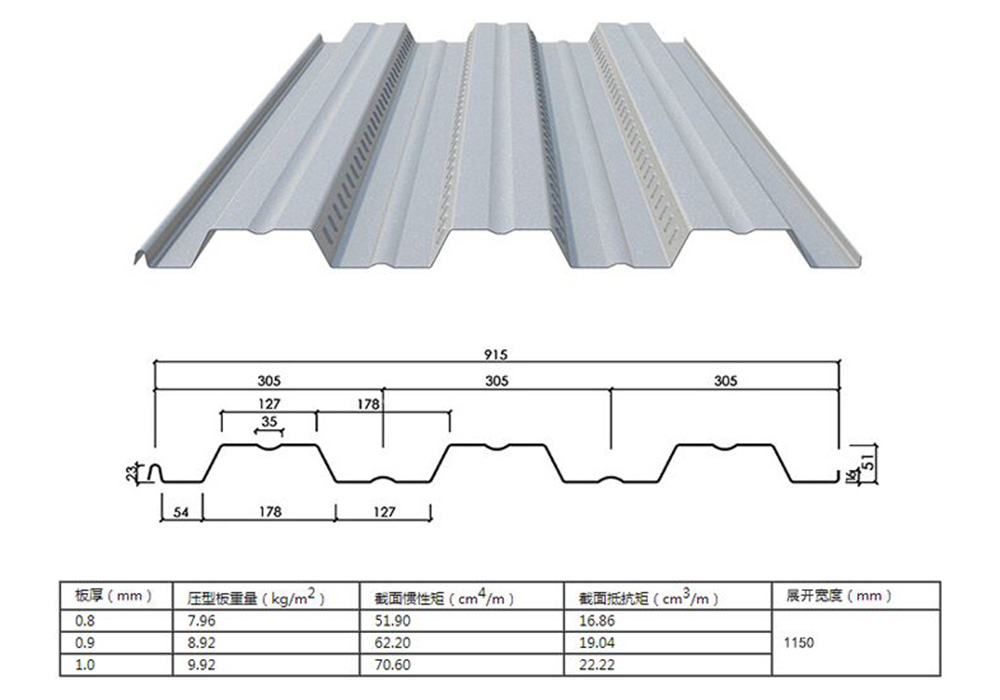

We are the professional manufacturer of making all kinds of steel deck roll forming machines, there are a lot of different profiles of floor deck, which meet all the requirements of different areas and customers. You can see the following profiles as below. Cause the profile, the main machine length is about 12M or more. And some customer need the hydraulic decoiler, automatic stacker and packing system, some big line length can be 90M or more. We have a lot of examples of this series machines.  If you want learn more of this kind of machine, choosing our company is your best option.

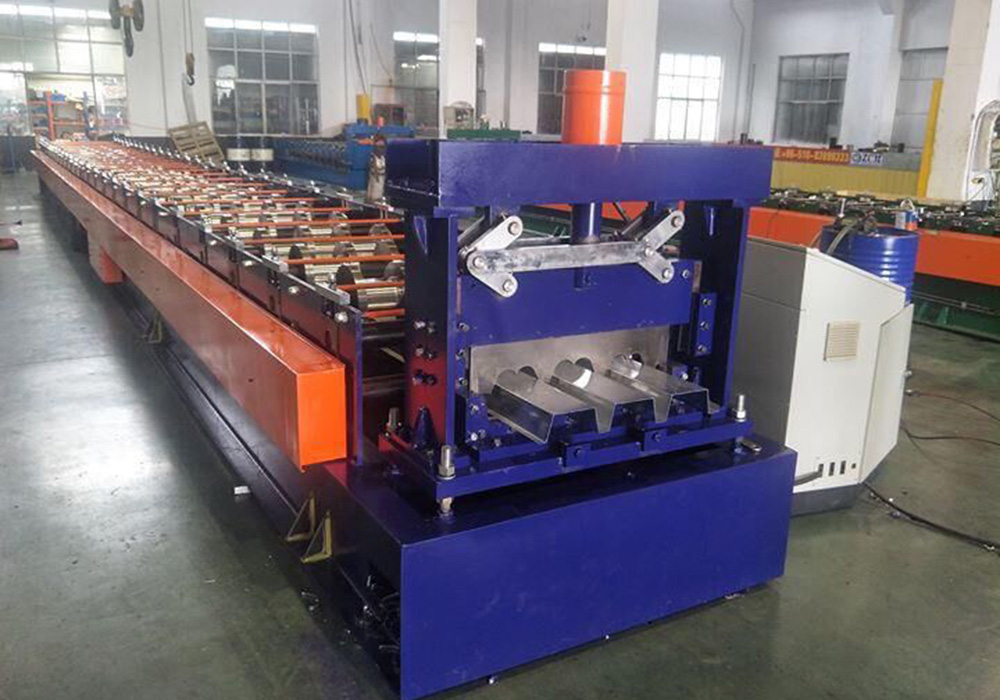

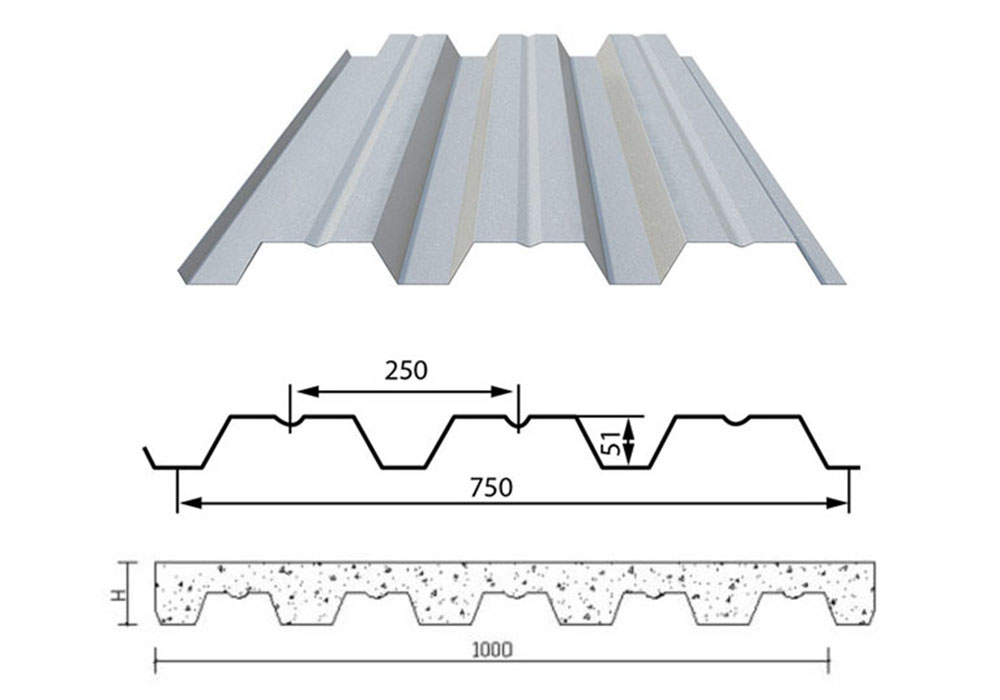

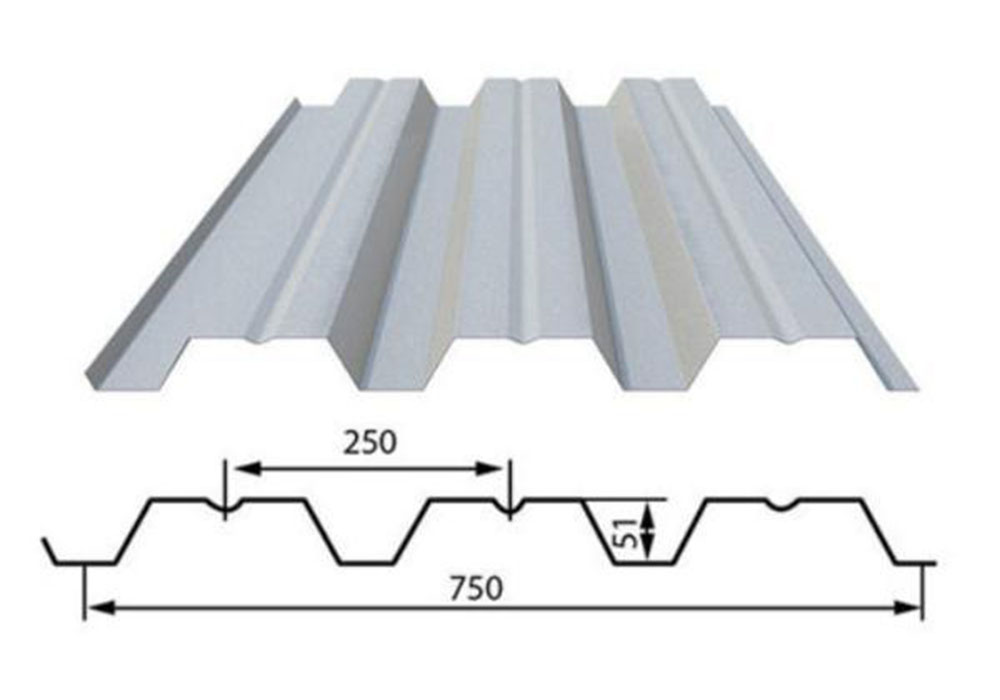

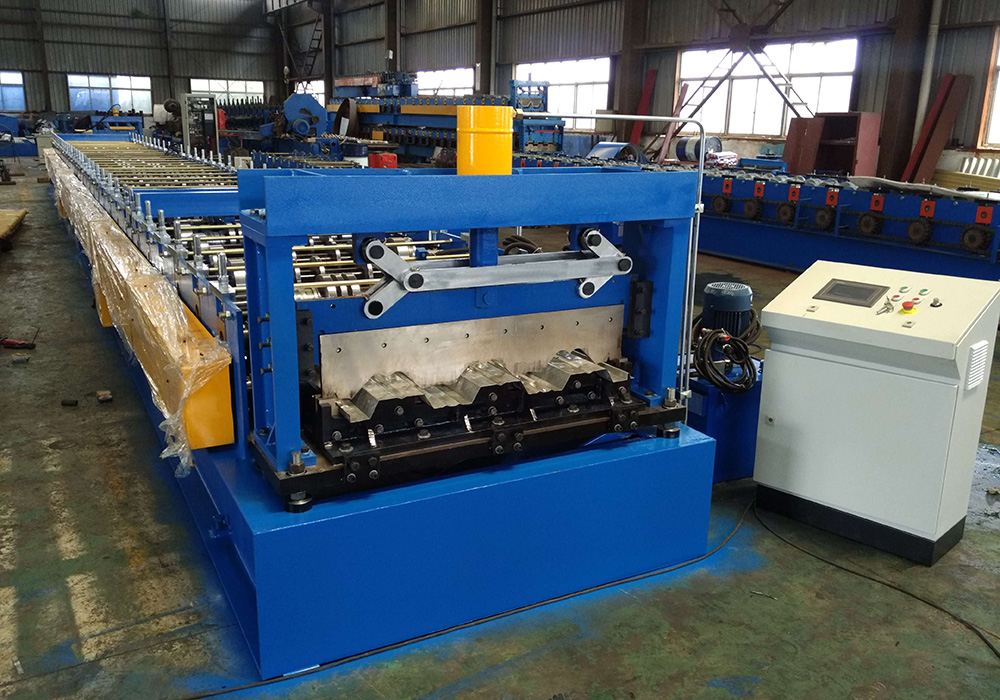

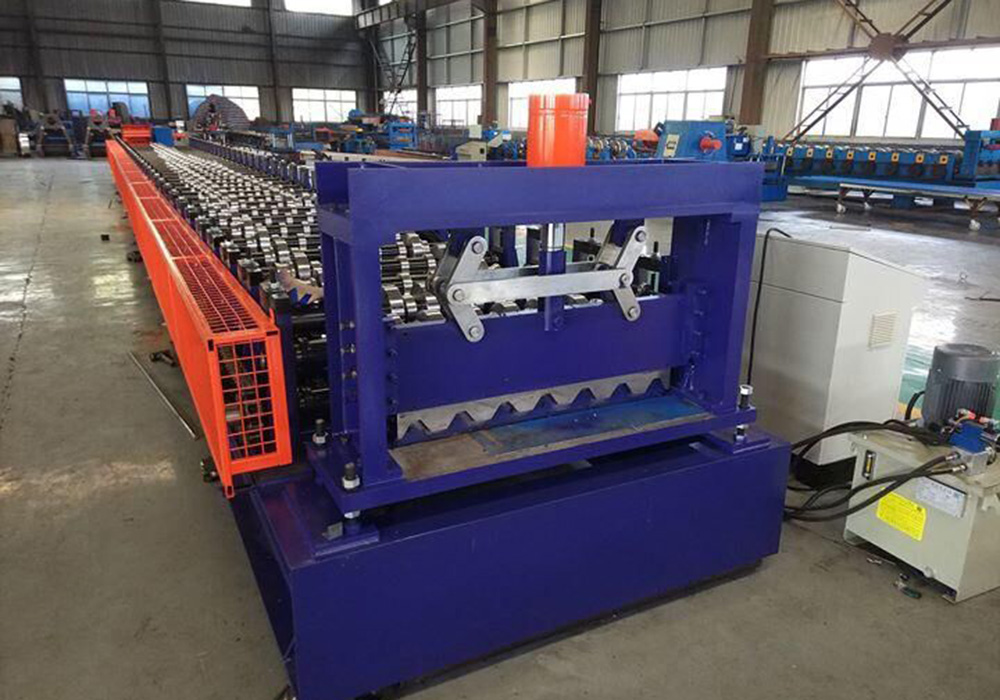

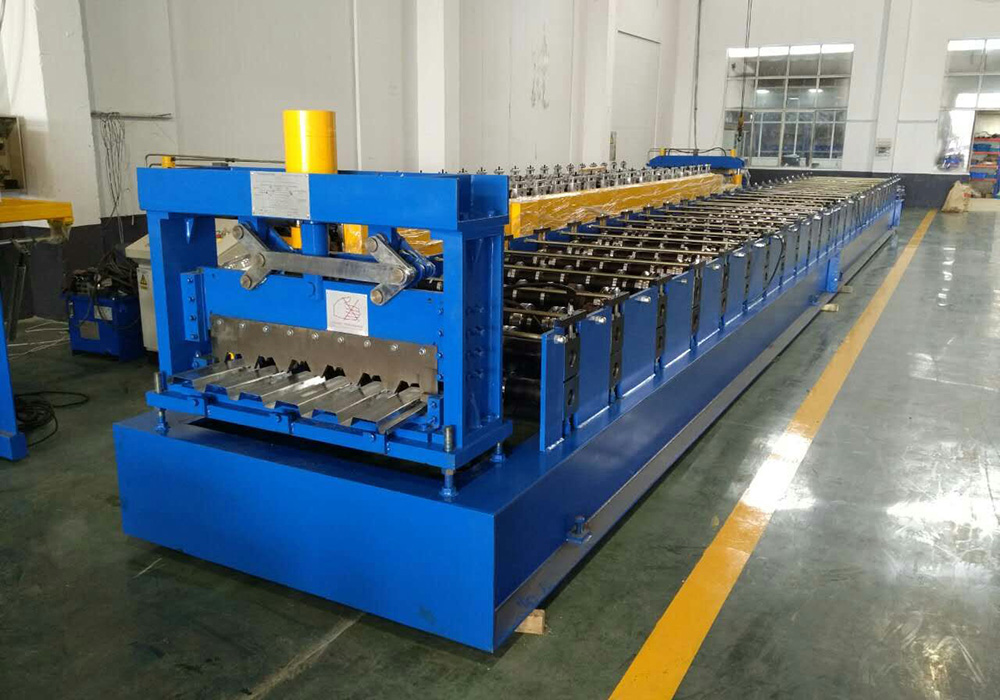

YX63.5-304-914 Deck floor roll forming machine
A、Main data

Rolling material（㎜）：Thickness 1220×(0.46-1.21) ×L.Strength yield≤G550MPa.

2．Working speed：12M /min

3．Forming steps：28 steps

4．Roller material：40Cr forged steel finish machining, with high  frequency quenching treatment and surface hard chrome plating.

5．Main shaft material：40Cr thermal refining

6．Main motor power： 11KW×2.Tailong reduction gears

7．Hydraulic station motor power：4Kw

8．Hydraulic station pressure：16 Mpa

9．Blade material：Cr12 with quenching treatment

10．Electric system：The machine uses industrial computer PLC control, cutting length tolerance≤2mm(PLC、Touch screen is panasonic, encoder is Omron, frequency converter is Yaskawa )

11．Dimension of the machine(LxWxH)：15500x1650x1480mm.

B、Structure

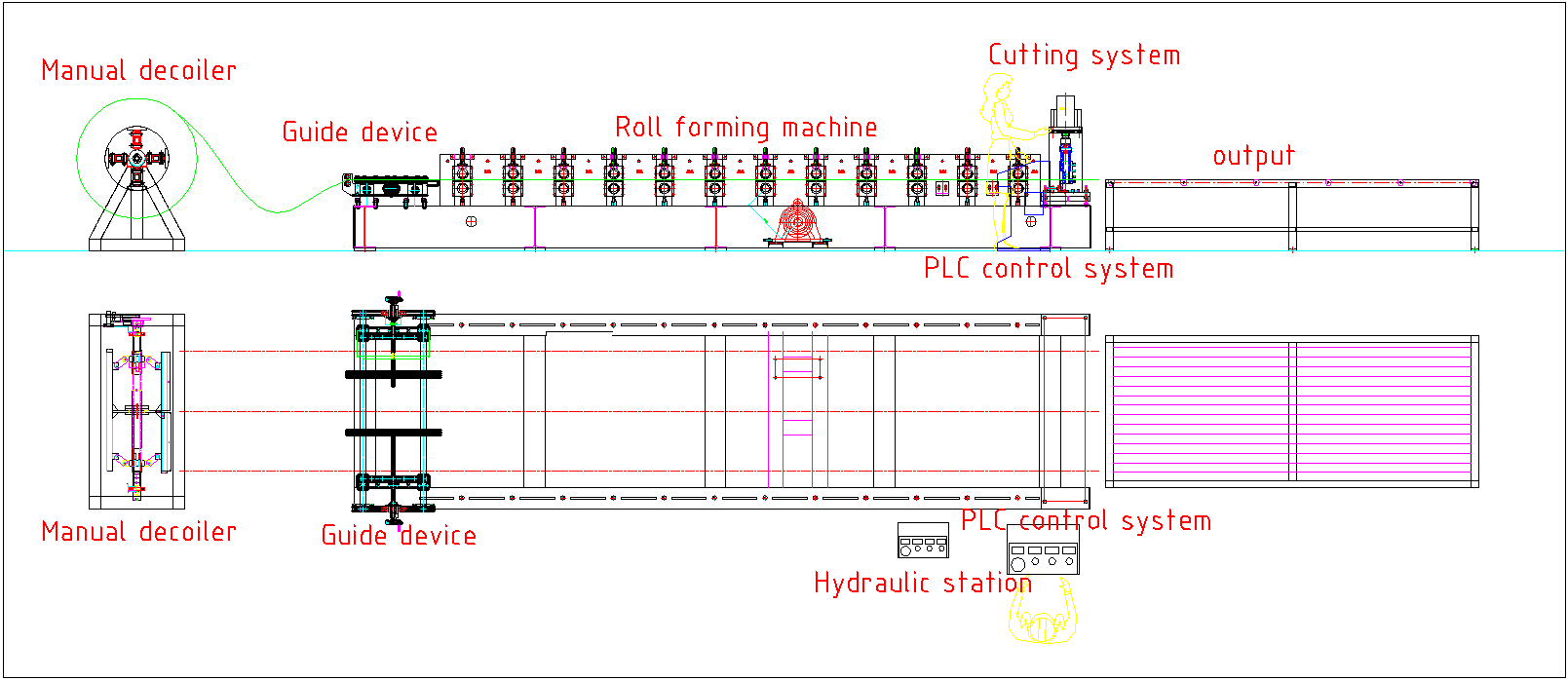

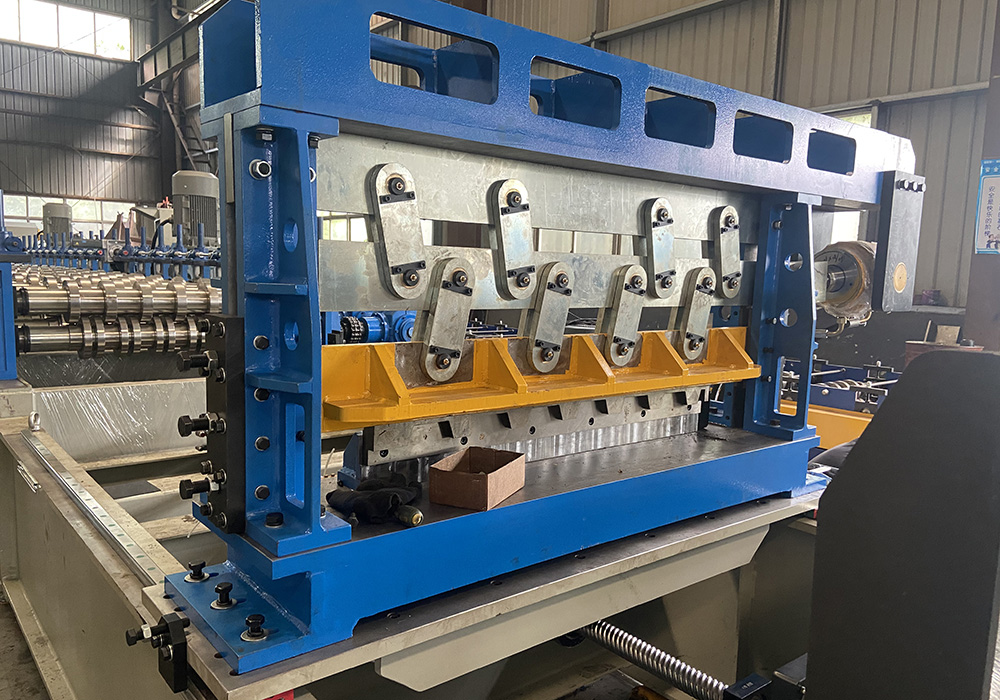

YX63.5-304-914 deck floor roll forming machine is including feeding device, drive device，roll forming machine，Hydraulic cutting, hydraulic system, electric system, output table, etc.

C、Production technology process

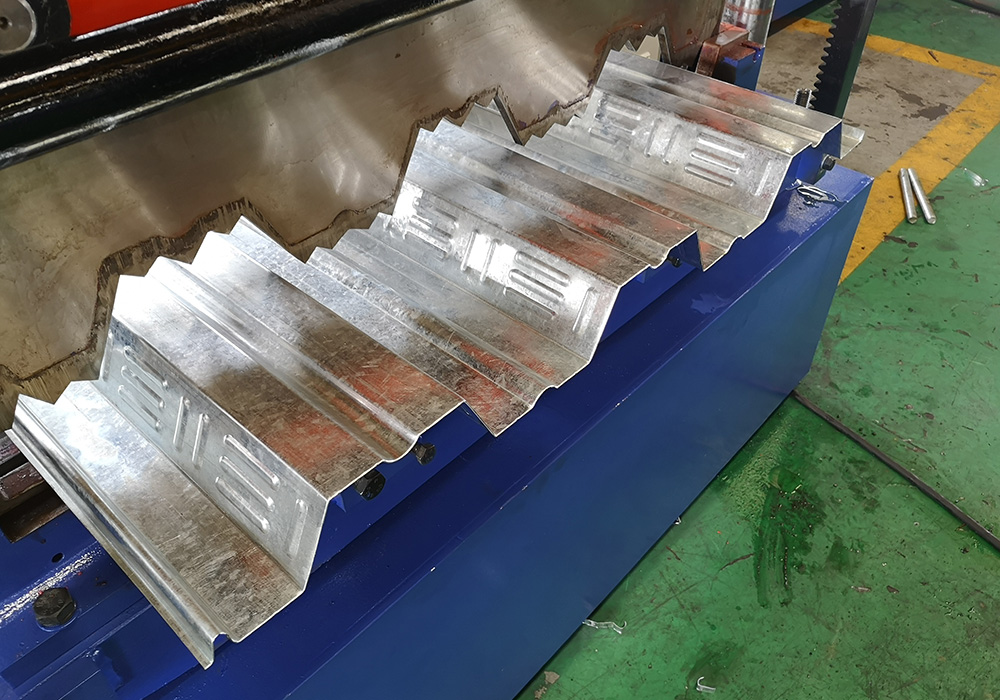

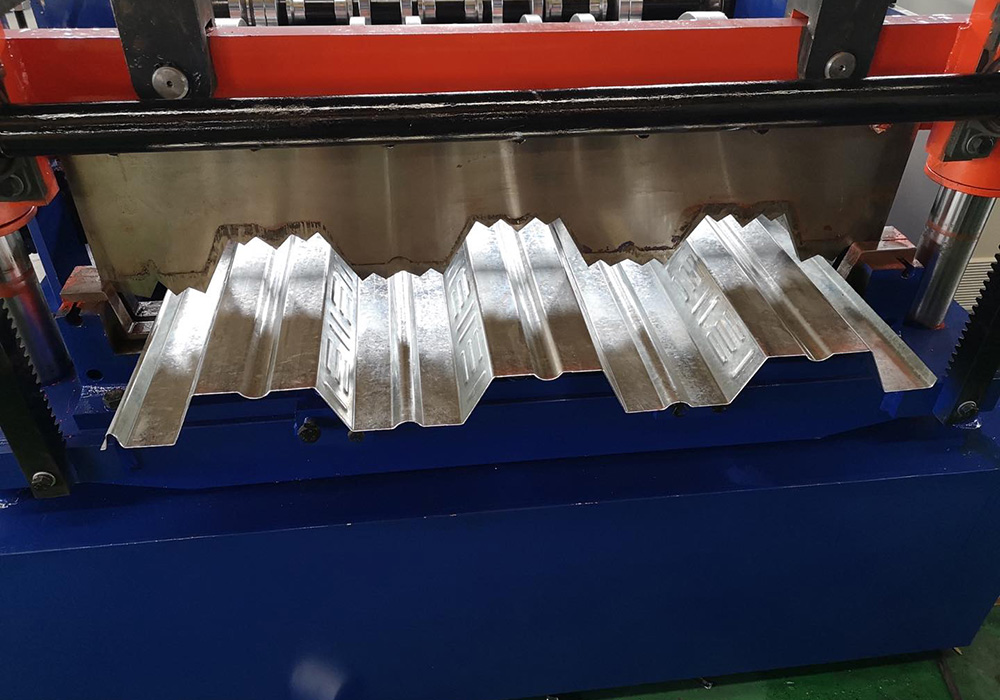

Feeding → Put coil into machine → leveling → forming → stamping after forming → Cutting → Output
