1. Main data:
1.2.1 Feeding width range of the material：Max about 550mm
1.2.2 Strip steel thickness range：1.5-3.0mm
1.2.3 Strip steel texture：Hot rolled carbon steel/ cold rolled carbon steel
1.2.4 Working speed： 0-15 m/min
1.2.5 Min length of work piece：3500mm
1.2.6 Tolerance of the straightness: 1—1.5 mm /1500 mm
1.2.7 Angle tolerance of the work piece ≤±1.5/1000mm
1.2.8 Fixed length of the work piece:10m±1.5mm
1.2.9 Roller step: 24 steps

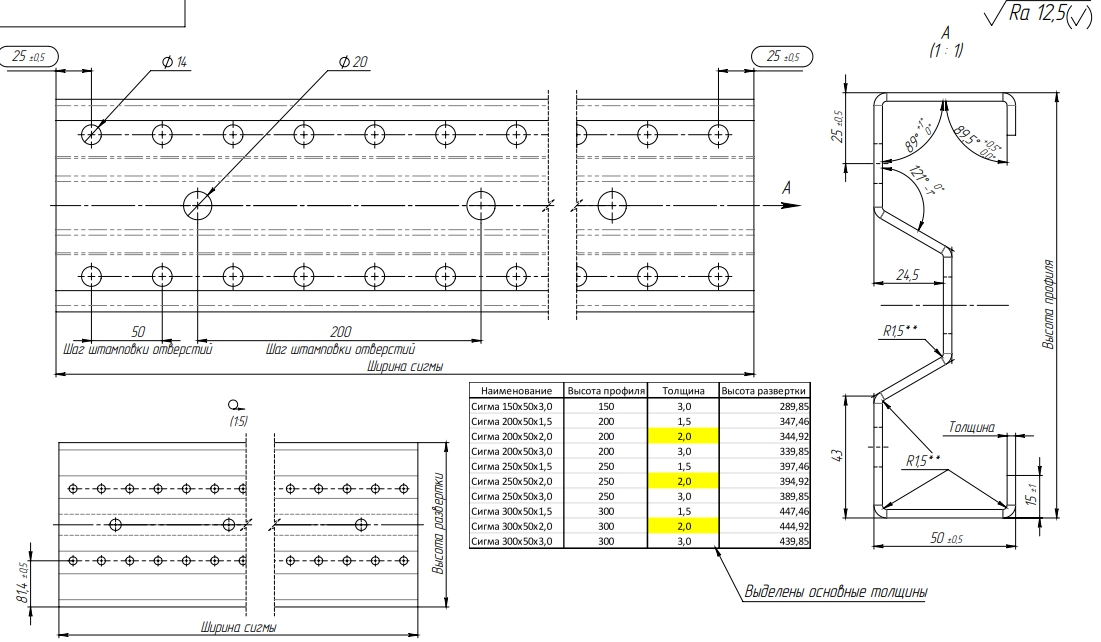

Omega profile：
2.  Rolling range of the end products
2.1 Max thickness of the solar stand: 3.0mm
2.2 Product specification
4. Full - Automatic solar stand roll forming machine layout （see the diagrammatic drawing ）

4.1.1 Technology process of the machine
Automatic feeder(5T) → leveling → servo feeding→ punching  → forming →following cutting →  output
4.1.2 Main parts technology specification
4.1.2.1  5T Automatic hydraulic feeder

1. Inner diameter of the steel coil：φ508mm；
2. Harmomegathus range of inner diameter: ф480-520 mm；

C. Max diameter of steel coil:φ1000mm; Load capacity：≤5T
D. Way of expansion：5T hydraulic automatic

4.1.2.2   Leveling machine
a.Working roller：7 rollers leveling machine
B. Features of structure：Leveling rollers rigidity and surface roughness mechanical property are improved after hardening and tempering and chrome finish. It is including the pinch roll and leveling roll, pinch roll can be adjusted separately, leveling up roller adopt massive structure, establish two adjustment points on front and back to form certain oblique angle, it can easy to improve the quality of leveling. There is a pair of guide flat rolls and two pair of guide vertical rolls on the feeding side of the leveling machine, guide vertical roll can be centring move.

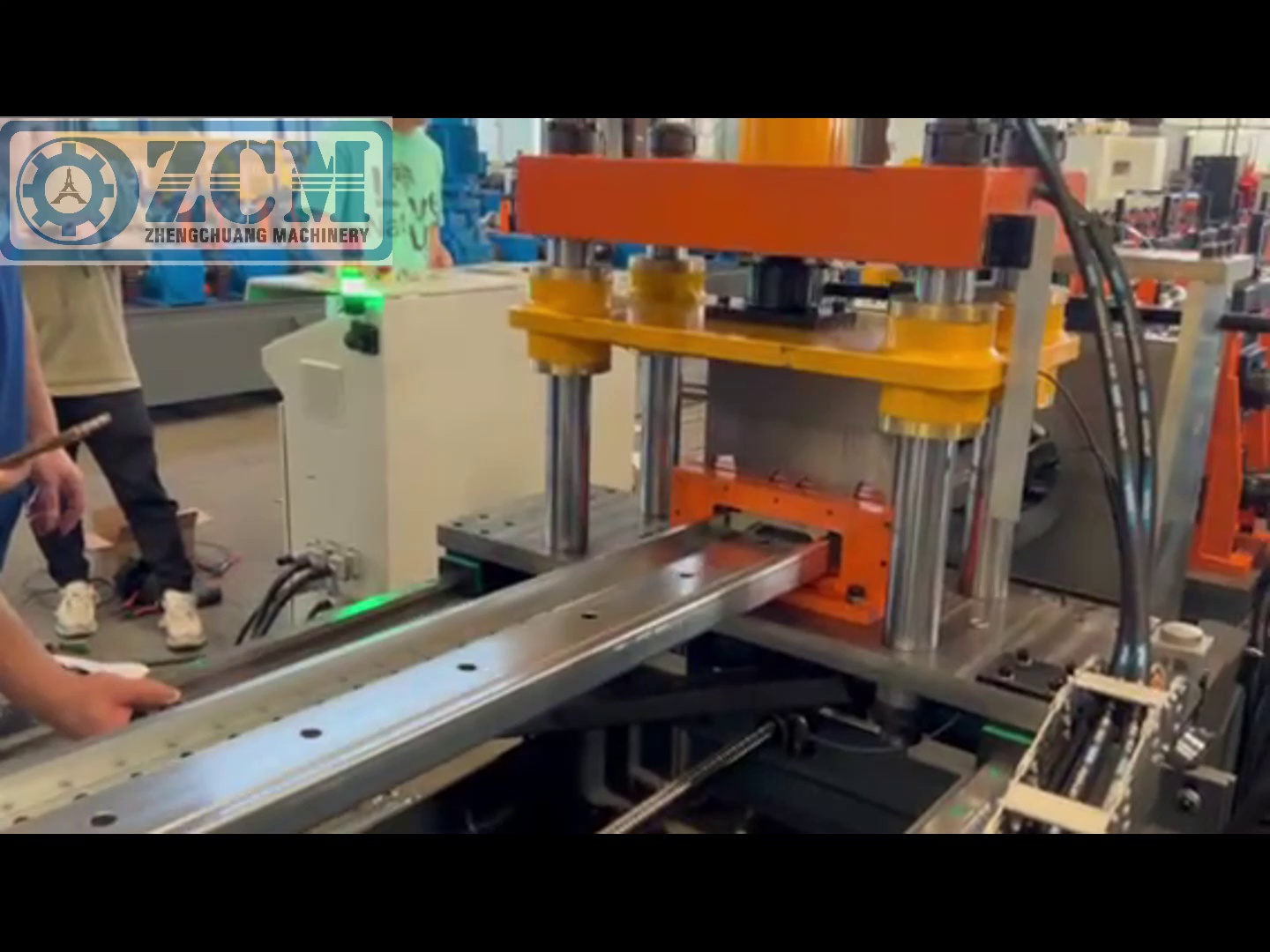

4.1.2.3 Punching Machine (picture for reference ) Brand is YANGLI 80T

Function: Punching
can meet all the punching holes size of the drawing.
Punching die material：Punching die material is SKH51or DC53，via forging and accurate grinding HRC58-62.
Main data：
Punching speed：80s/ time of stroke.
Thickness of the material：≦3.0mm
Capacity: 80T

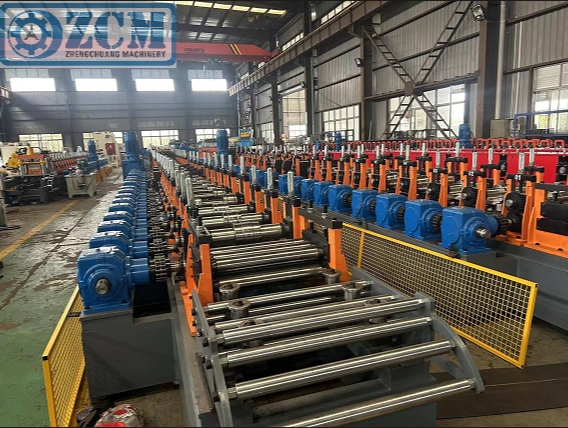

4.1.2.4 Roll forming machine
Main data

1. Motor power：22KW
2. Roller QTY：24 groups（Including 1 gear milling）
3. Working speed：0-15m/min
4. Material of roller：GCr15 HRC58-62°
5. Drive type：column structure with gearbox drive
6. Diameter of main shaft：￠70-90mm
7. Adjust width: The width of the different can be adjusted automatic
8. Cutting blade: Cr12Mov ( with 5 sets cutting moulds)
9. Cutting mode: Hydraulic cutting , and it is following cutting system

4.1.2.5  Electronic control system
：Kunlun Kuntai 7inches touch screen, Siemens PLC，Yaskawa frequency converter, Schneider low-voltage apparatus.
a. The whole line uses PLC control, Liquid crystal touch screen, human-computer interface to realize the interaction between the PLC and human. Operator via the setting procedure to automatic operation and monitor the control process to realize that the operator control the whole line and change the control parameter, and monitor the running status, parameter and failure indication of the equipment. Length of the work piece is set by digital, the length of the work piece can be adjusted.
