Upright Racking Roll Forming Machine Description

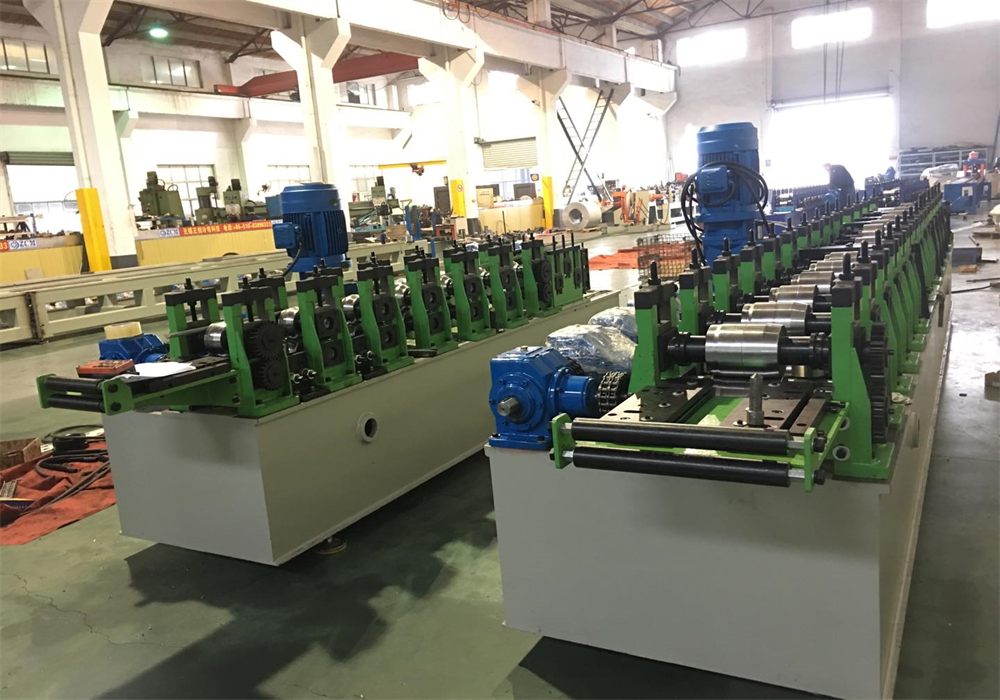

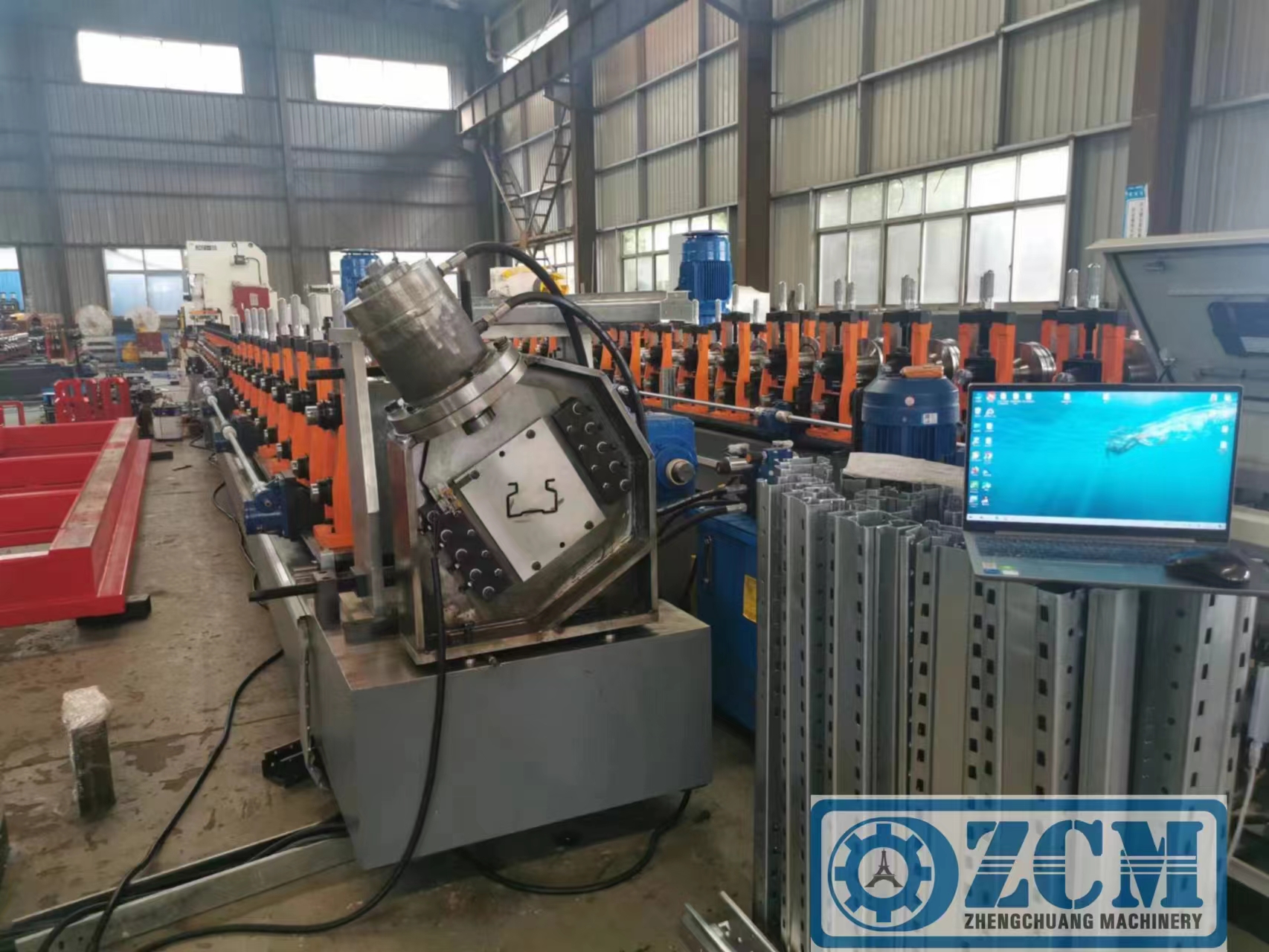

We are the professional manufacturer of making upright racking roll forming machine . This kind of machine can make different sizes according to customer requirement, the flange and width can be adjusted by manual or automatic mode basis of the requirement of customer . The cutting mode can be following hydraulic cutting system. This kind of line also have the punching system, some customer use the hydraulic punching system, some customer use the punching press,upright roll forming machine can form the material thickness 1.0-3.0mm, and raw material is pre-galvanized steel, hot-rolled and cold-rolled steel. And standard size of the upright is 80mm, 100mm,120mm.

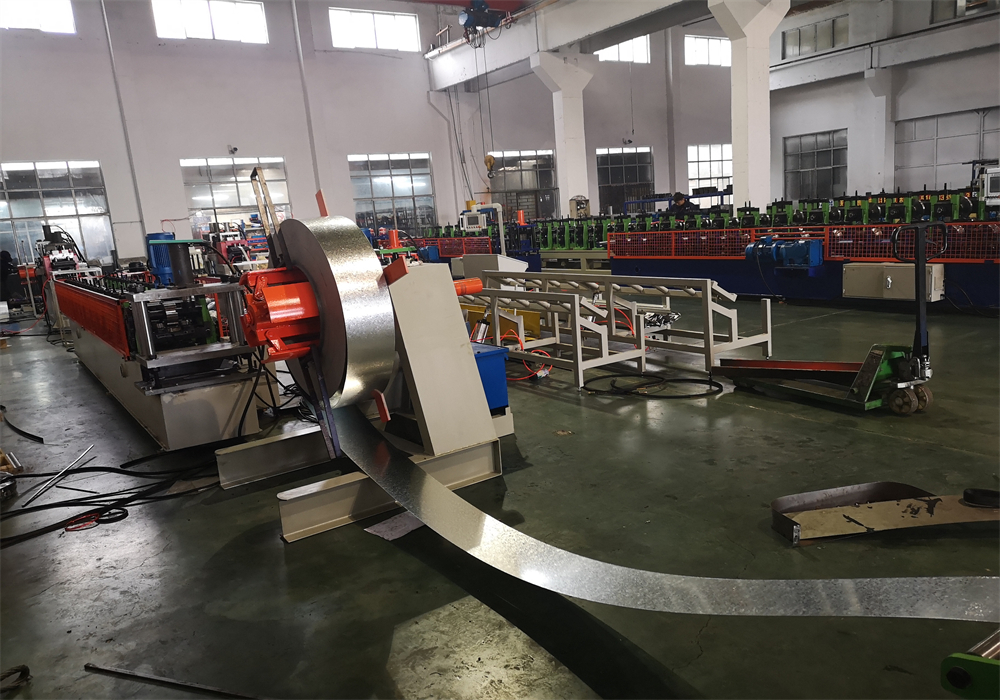

The whole line includes the decoiler, servo feeder device, punching press, punching mould, roll forming machine, cutting blade, electric system, etc. Please contact us if you want to learn more details of this kind of machine.

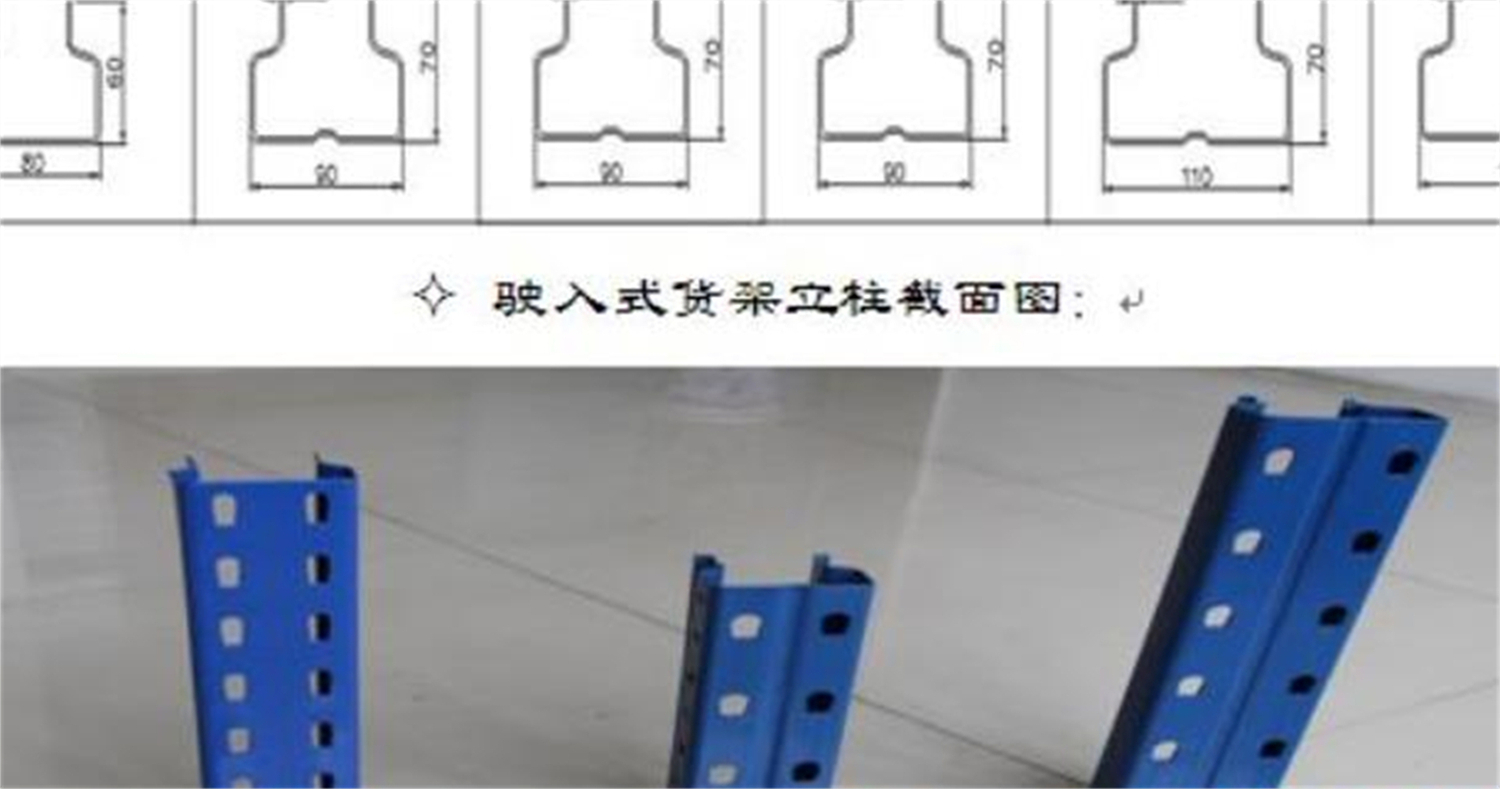

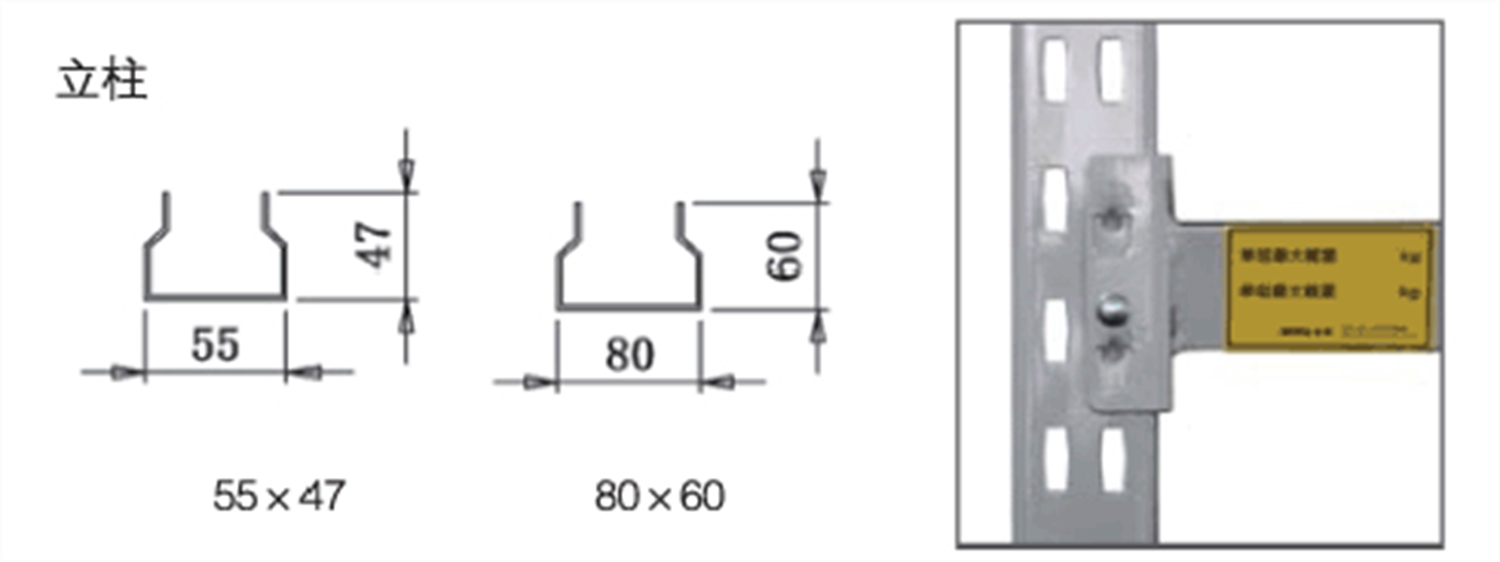

Profiles

A. Main data
1.Material specification：thickness 1.5-2.5mm，strength yield≤G300MPa

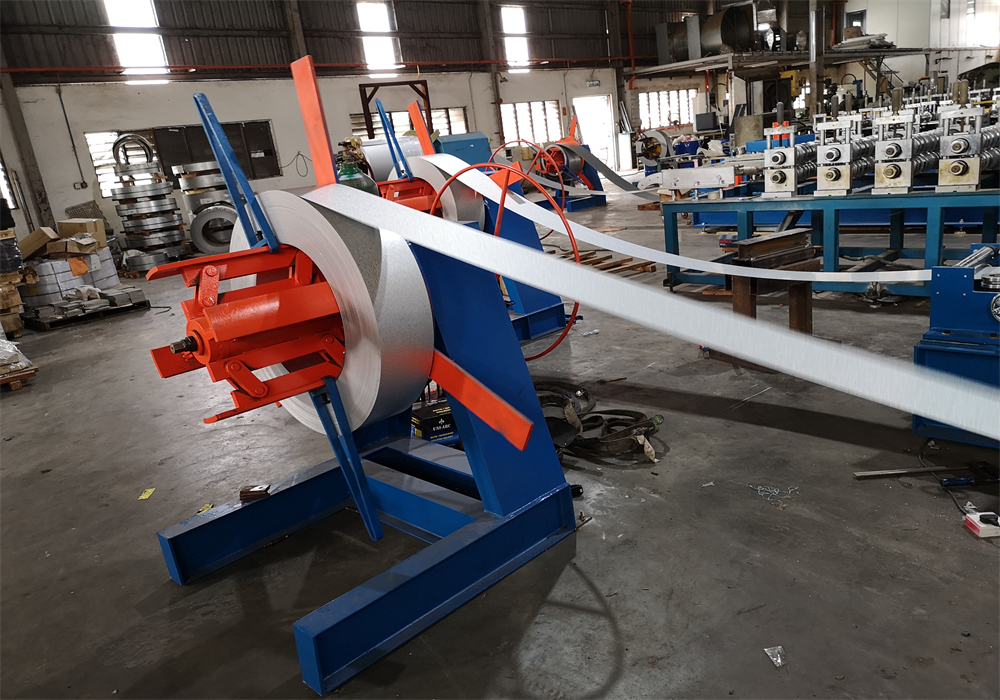

2.De-coiler：5T hydraulic decoiler
3.Working speed：0-15M/min（Including the punching and cutting time）.10-15 M/min for forming speed.

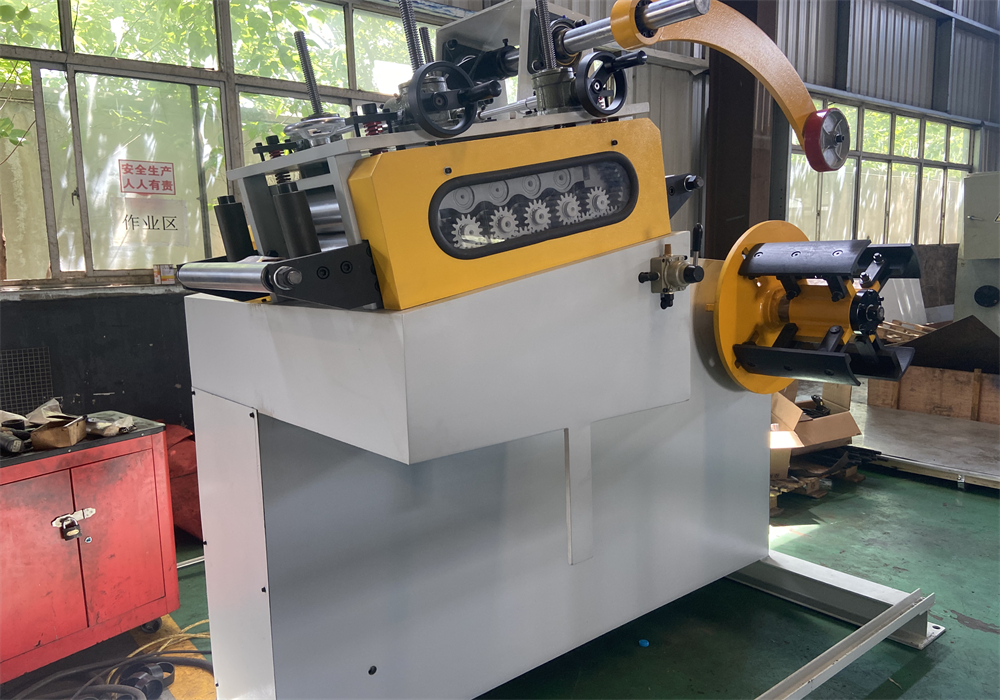

4.Leveling machine: 9 rollers leveling, 2 rollers feeding
5.Leveling machine motor power：5.5 KW
6.Roller step：20 steps
7.Roller material: GCr15 quenching treatment HRC 58-62°
8.Main shaft material: 45# high quality steel with thermal refining treatment.
9.Main shaft diameter: ￠80 mm
10.Main motor power：30 KW
11. Structure mode：Column structure, gearbox drive
12.Width adjustment: Automatic adjustment by PLC
13.Hydraulic station motor power：5.5 KW
14.Servo motor power: 4 KW

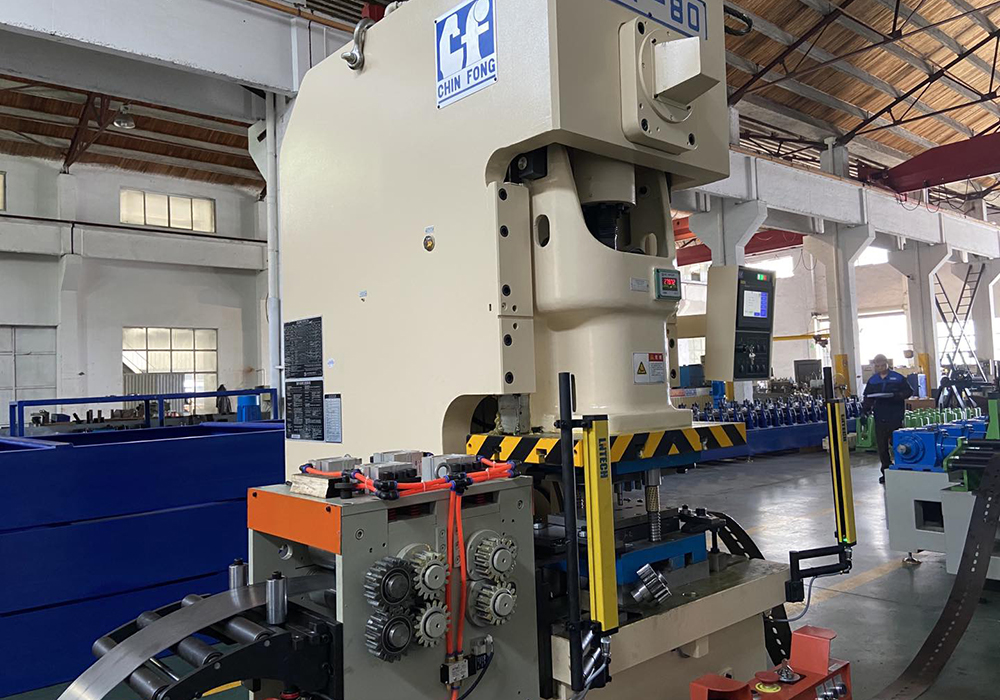

15.Punching machine Tonnage: 80 T

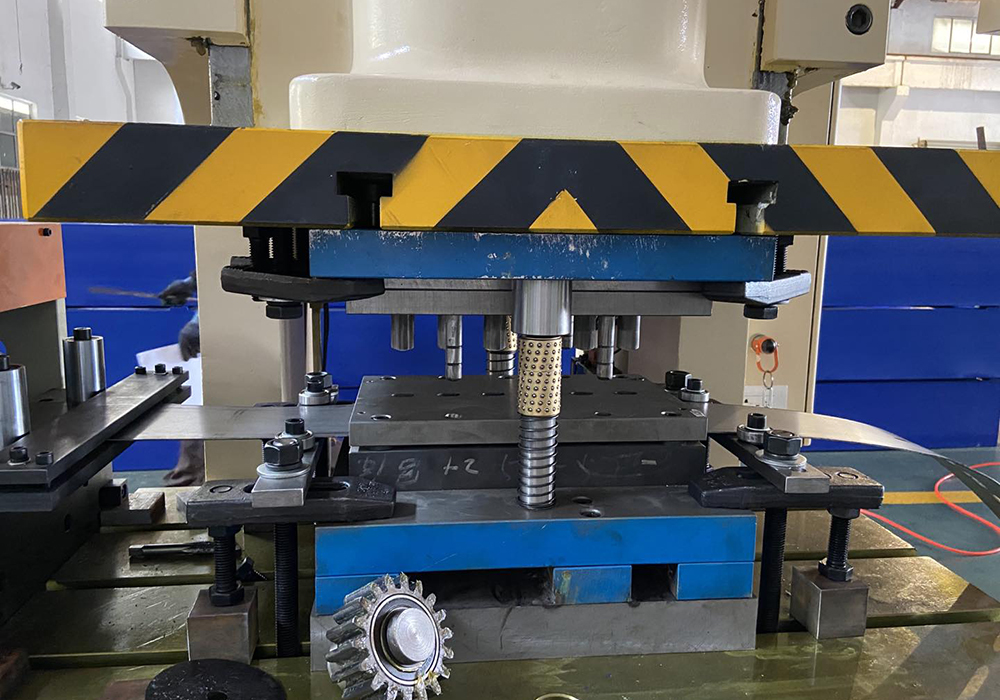

16.Punching mould: 3 sets for 5 profiles. Material of mould: SKD11
17.Punching machine frequency: 45 times/min
18.Electronic system：The whole line use PLC to control, PLC is Siemens PLC.
19.Punching system：Using CNC control
20.Cutting mode：Hydraulic cutting
21.Machine size: 10000x1300x1200mm (LxWxH) （the main roll forming machine size）
22.Need 2x40HQ container
23.Color: Blue and orange ( or customized)

B. Main structure

The machine is including 5T de-coiler, leveling machine, servo feeding, punching machine, roll forming machine, cutting blade, hydraulic station, electronic system, output table, etc.

No	Equipment name	Type and specification	QTY	Motor power/KW	Remark
1	Hydraulic feeder	5T Automatic Hydraulic	1 pc	4 KW	Non-standard
2	Leveling machine	9 rollers for leveling	1 pc
3	Servo feeder	Matching the individual control system	1 pc	5.5 KW

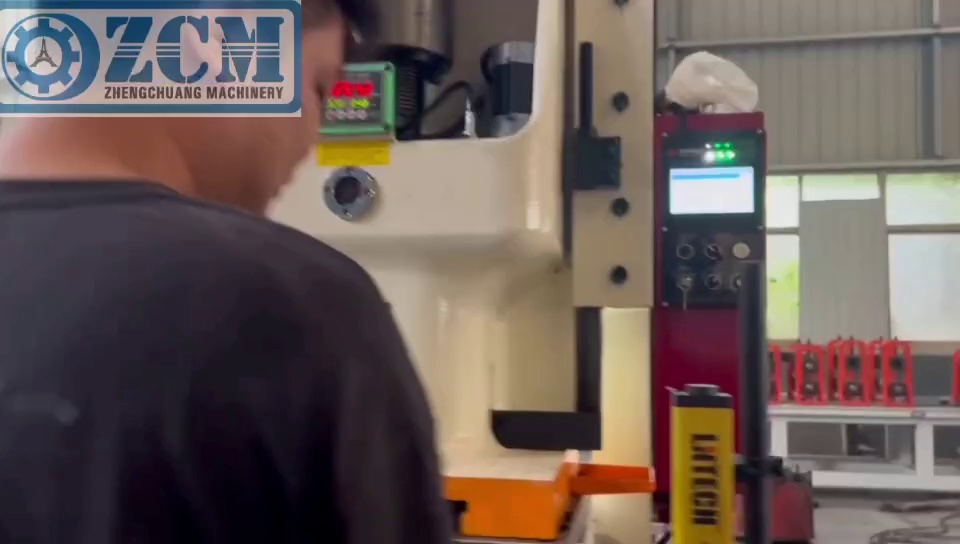

4	Punching machine	JH21-80 High speed punching machine	1pc	7.5 KW	80 T

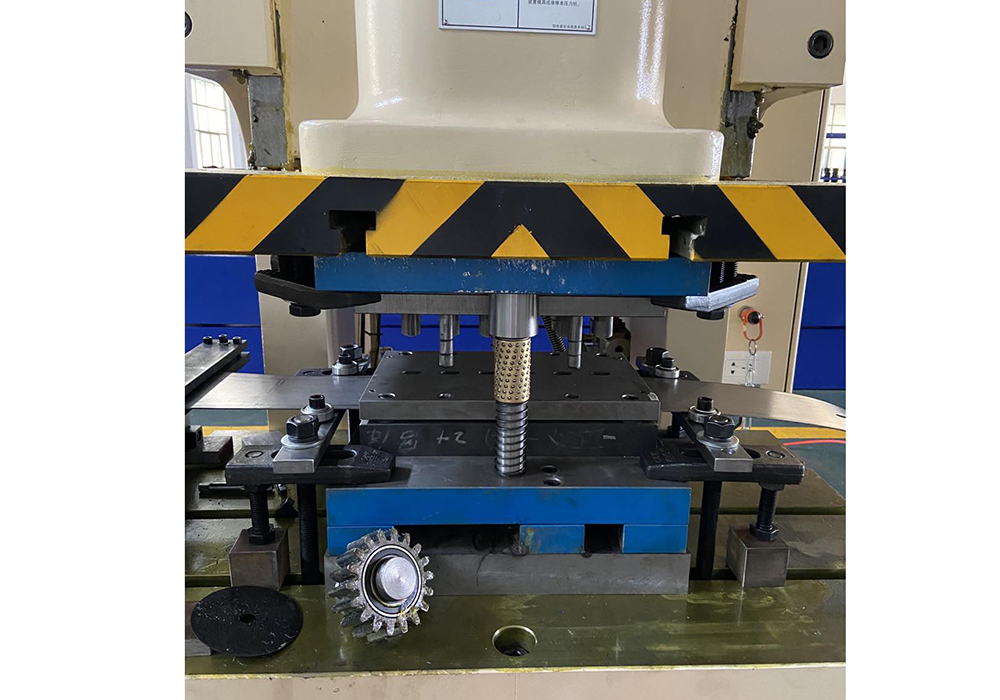

5	Stamp die	Material: SKD11	3sets

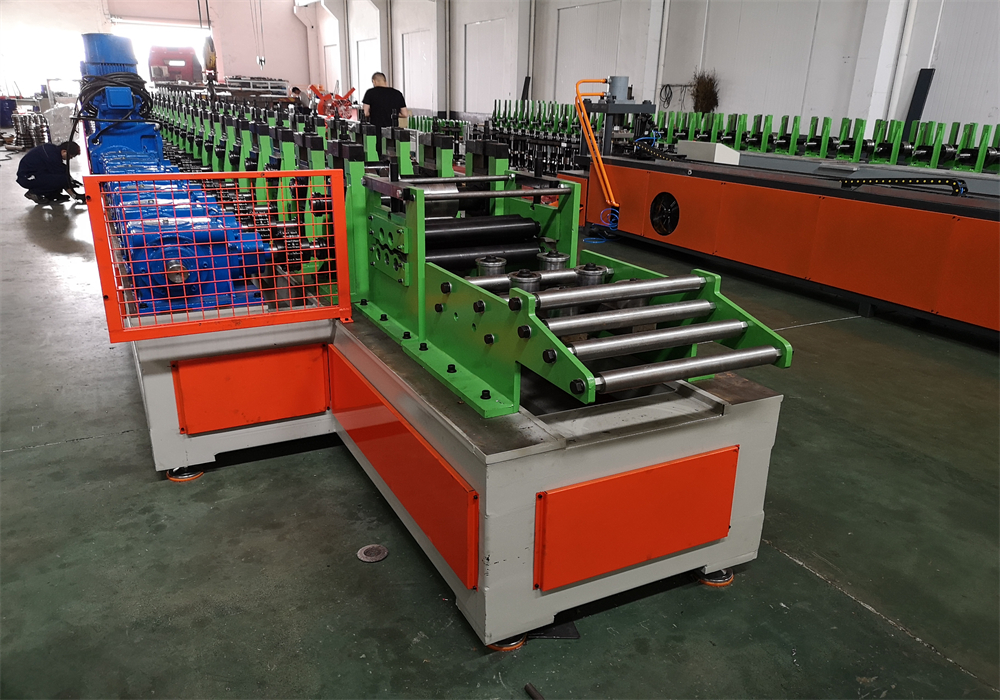

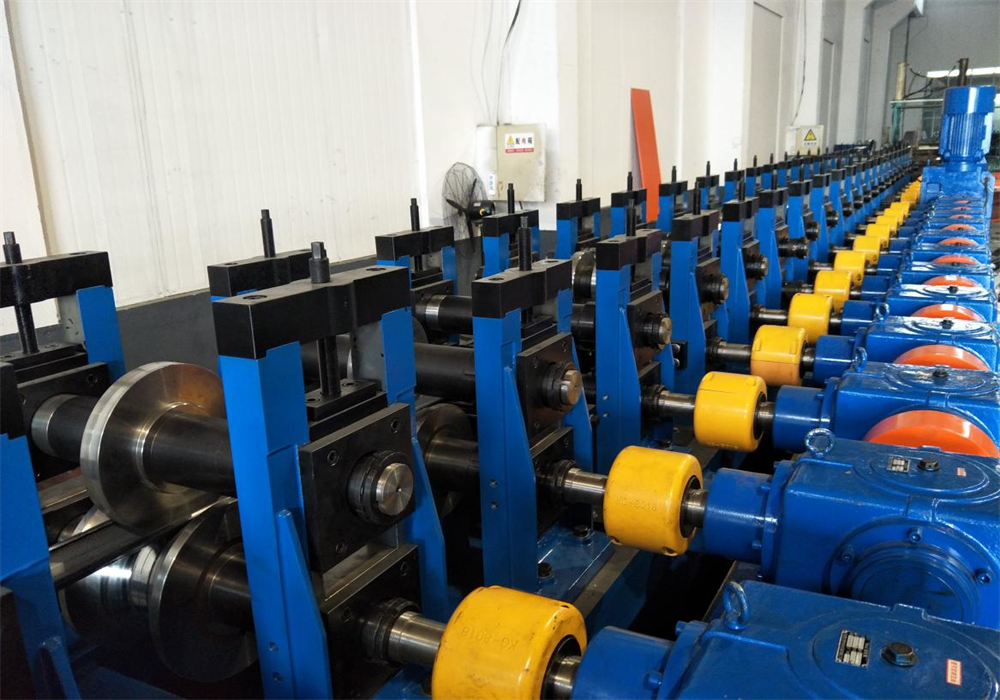

6	Roll forming machine	Memorial archway style structure, gearbox drive	1set	30 KW	Whole set
7	Hydraulic cutting device	hydraulic belt energy storage	1set	7.5 KW
8	Control system	Siemens PLC control system of the whole line	1set
9	output table	Length : 3M	2sets
10	Frequency converter	Yaskawa	1 set
11	Encoder	Omron	1 set
